| KM-GC-C Grass Cutter — Technical Parameters | |
|---|---|
| Model Specifications | |
| Displacement(cc) | 42.7/45/51.7/53 |
| Standard power(KW/rpm) | 1.25 (1.5/1.47/1.9) /7500 |
| Form of carburetor | Diaphragm |
| Mixed fuel ratio | 25:1 |
| Capacity & Dimensions | |
| Fuel tank capacity(L) | 1.2 |
| Shaft diameter(mm) | 28 |
| Nylon cutting range(mm) | 460 |
| Blade diameter(mm) | 255/305 |
| Weight(N.W/G.W.)(kg) | 8/10 |
| Package Dimension(mm) | 1850×300×280(105) |
| KM-GC-D Grass Cutter — Technical Parameters | |
|---|---|
| Model Specifications | |
| Displacement(cc) | 37.7/43.5 |
| Standard power(KW/rpm) | 1 (1.7/1.8) /7500 |
| Form of carburetor | Diaphragm |
| Mixed fuel ratio | Separated/25:1 |
| Capacity & Dimensions | |
| Fuel tank capacity(L) | 1.2/0.95 |
| Shaft diameter(mm) | 28 |
| Nylon cutting range(mm) | - |
| Blade diameter(mm) | 305 |
| Weight(N.W/G.W.)(kg) | 8/9.5 (10.3) |
| Package Dimension(mm) | 1670×105×105 |
Fit bigger optional displacement: 45cc/53cc, meet more powerful demand of customers. But,the fuel con-sumption be saved up to20%, compared with other engine of same power.Adopt professional material to guarantee 500 hours durability.
Keep the finest dust away from the engine which means a longer service life, the filter canbe clean and washed easily.
Multi spring structure of starter keeps load peaks to a minimum so they can barely be felt on the cord. That means trouble-free, almost effortless starting.

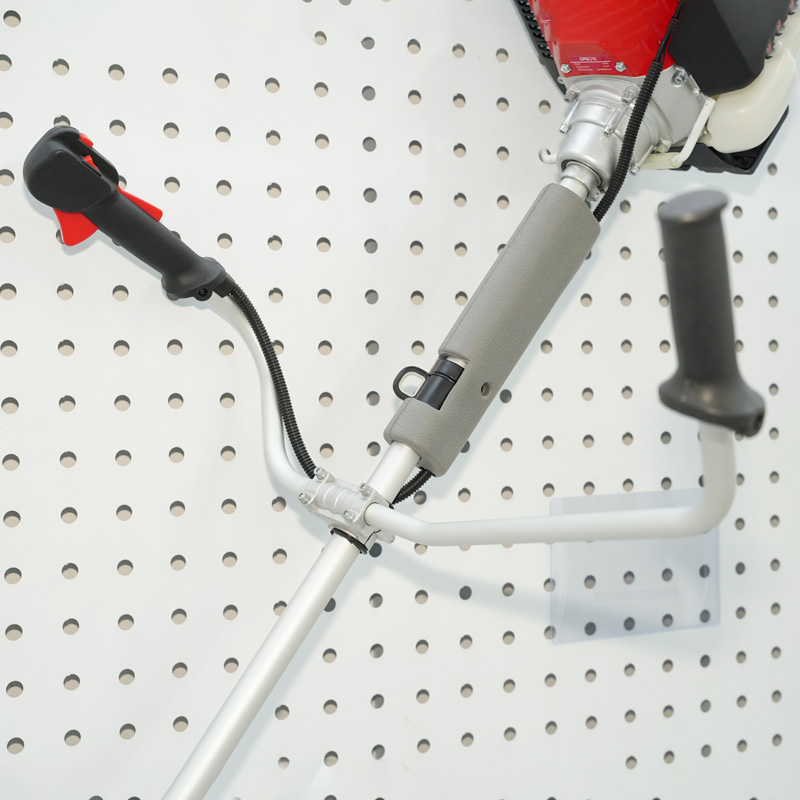

Vibration absorption points on clutch, handle and shaft, to isolate the operator with machine.It makes the tool less tiring and more comfortable to operate.

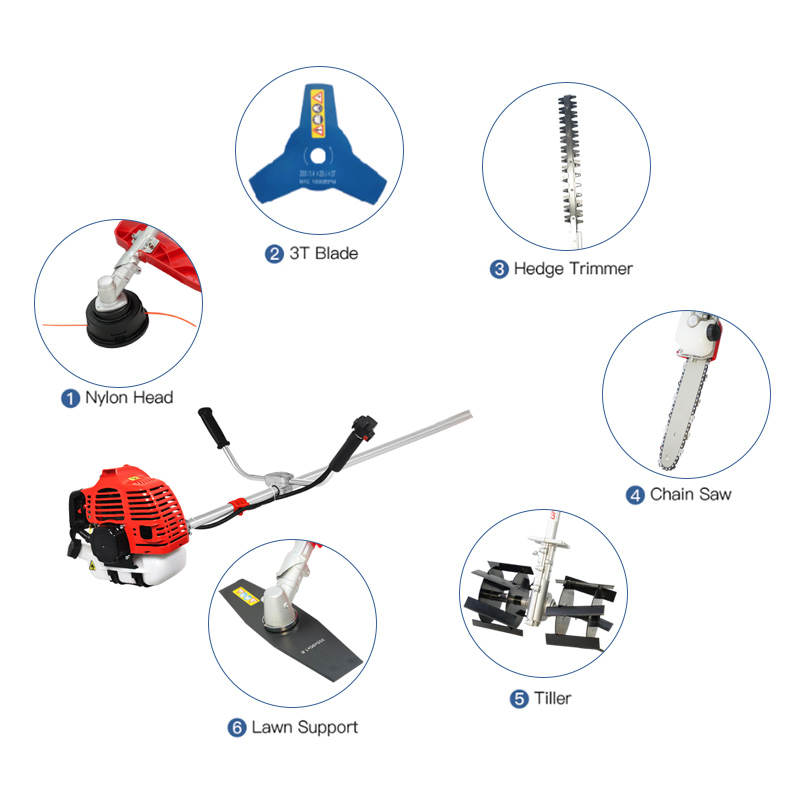

Operator can adjust cutting width by remove the safety shield,to meet different workingsituation.
Make work more comfortably and easily.Self-locked button release finger pressure and make operation more conve-niently.
Our machines have a 12-month warranty, during which the core components are replaced at the factory price!
30% deposit, 70% before shipment.
The seller will arrange the freight and customs clearance. We will deliver the goods to the customer’s designated address/port. The seller handles shipping and customs procedures. Balance must be fully paid before shipment.
Sure, we conduct functionality tests before shipment and can provide customers with testing videos to ensure their peace of mind during the purchase.
